Overlay Placement Horizontal Cement Silo With Pressure Relief Valve And Auger low profile cement silo

  • 1
  • 2

Brand Name : ENCKE

Model Number : 26 m³+26 m³+26 m³

Certification : CE SGS IS9001

Place of Origin : Mainland

MOQ : 1 set

Payment Terms : T/T, L/C, D/A, Western Union, MoneyGram, D/P,

Supply Ability : 1000 sets per year

Delivery Time : 10-20 work days

Packaging Details : Stand Container

Output : Screw conveyor 219+Discharge butterfly valve

Material Level Detection : Level Indicators

Feed From : Pneumatic Conveying

Type : Stand Container Form Overlay placement

Safety : Pressure Relief Valve

Dust Filter : Dust Collector

Capacity : 26 m³ +26 m³+26 m³

name : powder storage silo

Contact Now



Overlay Placement Horizontal Cement Silo With Pressure Relief Valve And Auger low profile cement silo



Technical Features:



Horizontal cement silo

(theoretic volume):

26 m³+26 m³+26 m³

26m³*1.2t/m³=31t

26 m³*1.4t/m³=36t

 Remarks :It is calculated by different density .
Total electric power 11KW. 380V/50HZ

Automatic and manual

control system

 Bottom control   Main parts is Siemens
Conveyors Ø 219 mm 45ton/H At the bottom of the silo
Level indicator rotary action
Breaking the arch by vibrating MVE200/3
Dust collector Air -jet type
Safety valve
Self-supporting steel frame
OPTIONAL
The sloping conveyors Ø 219 mm
Air compressor 3KW, 300L/min,
DIMENSIONS AND WEIGHT
Width mm 2438
Length mm 6055
Height mm 2591
Weight kg About 6.3





 General technical information:

    Overlay placemen Horizontal Cement Silo is designed in accordance with a standard 20-inch container that can be used alone or in conjunction with a mixing station.

    This mode is consist of two standard container-shaped silo. The pneumatic conveying is used to feed into the warehouse .And the silo

     is equipped with a pressure safety valve and a pulse dust collector.
    The land transportation of silo can be carried by container transporting vehicles.

    Unique control system for compatible connections to other devices,and can be customized
    The silo can be customized !

    Silo combination can be increased in height direction.

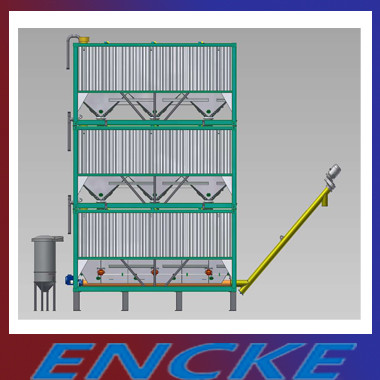

Detail show:



Overlay Placement Horizontal Cement Silo With Pressure Relief Valve And Auger low profile cement silo

Overlay Placement Horizontal Cement Silo With Pressure Relief Valve And Auger low profile cement silo
