Custom Portable Concrete Mix Plant / Compact Concrete Batching Plant Load Cell Weighing
concrete mixing station technical superiority
1. Our mixing plants adopt integrated structure, complete machine set installation, so it can move conveniently, and the price is reasonable.
2. The control system is full automatic, and it have function of screen display, matched storage, compensating fall automaticly, and it can also achieve manual controlling.
3. horizontal shaft concrete mixer, which can mixed well , and have high efficiency.
4. The aggregate adopts hopper lifting, so it operates steadily.
5.The total equipment used standard components,So it maintain conveniently.

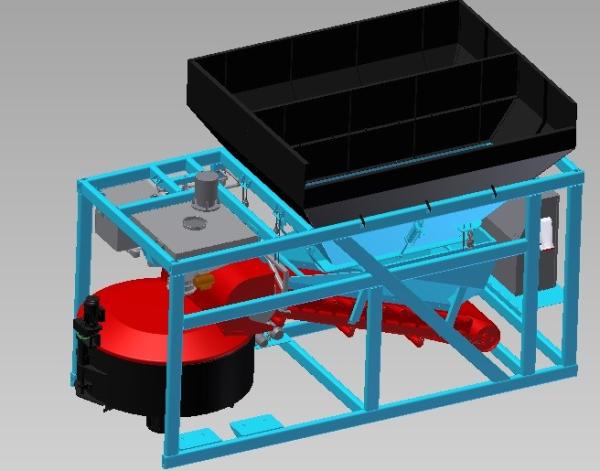

Compact Concrete Batching Plant Load Cell Weighing
Portable concrete batch plant , makes it possible to produce concrete wherever needed according to international standards in a very economical way even for small projects that require relatively small quantity of concrete, stationary concrete batching plant.
Provides the following advantages:
Quick installation without crane and quick relocation (only 2 hour)
No need for any concrete foundation
Installation on a very small space
Transportable by towing on roads
Cost effective shipping to overseas
No permission required for concrete production
Allowing concrete production on site, significantly reduces the concrete transportation cost
High quality and precise concrete production
Without axles and tires

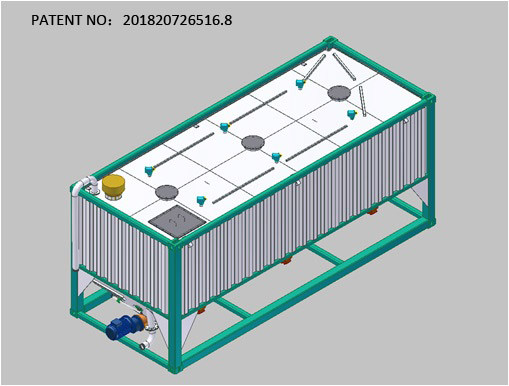

Recommended supporting cement silo
Detail show:
1. Mixer detail show
2: Weighing system , Driving system etc. detail show
Technical features:
| Max mixing capacity: | 0-50m³ / h | |
| Total electric power (min-max): | 35-57KW. | |
| Automatic and manual mixing control | Included | |
| WEIGHTING SYSTEM |
| Aggregate bins | 2*4m³ | Sand and stone |
| Aggregate Weigh Hopper | 0-1800KG | Weighing load cell |
| Aggregate Weighing belt conveyor | | Belt wide B=800 |
| Cement Weighing Capacity | 0-400KG | Weighing load cell |
| Water Weighing Capacity | 0-300KG | Weighing load cell |
| Additive Weighing Capacity | 0-25L | |
| MIXER |
| Load capacity | l | 1200L | |
| Mixing capacity | l | 750L |
| Pump electric motor | kw | 22 |
| AIR COMPRESSOR |
| Delivery | l/min | 330 | |
| Air tank | l | 100 |
| Electric motor | kw | 3 |
| RECOMMENDED OPTION |
| Portable silos | m³ | 26 | Multi choice |
| Concrete belt conveyor | m | 12 | Width 800,7.5kw |
| OPTIONAL |
| Cement silo | 15-100 ton | |
| Container bag bins | 2m³ | Suitable for container bag |
| Additive Weighing system | 25L | |
| Conveyors (Ø 219mm with motor) | | |
| DIMENSIONS AND WEIGHT |
| Width | mm | 2305 | |
| Length | mm | 6055 |
| Height | mm | 2530 |
| Weight | kg | |
