VCP Pressure Relief Valve Safety Valve Horizontal Portable Cement Silo Parts

SHANDONG ENCKE IMP&EXP CO.LTD
Contact Now

VCP Pressure Relief Valve Safety Valve Horizontal Portable Cement Silo Parts

  • 1
  • 2

Brand Name : ENCKE

Model Number : VCP273

Certification : CE SGS IS9001

Place of Origin : Mainland

MOQ : 5 sets

Payment Terms : T/T, L/C, D/A, Western Union, MoneyGram, D/P,

Supply Ability : 10000 sets per year

Delivery Time : 7 work days

Packaging Details : Stand

Pressure : multiple 2 bar,4 bar ,6 bar

Material : stainless steel

Contact Now

VCP Pressure Relief Valves safety valve Horizontal Cement Silo Accessories



 General technical information:

  Helical springs keep the valve lids closed when the pressure value remains within the preset limits. The three outside spring rods keep the external ring-shaped lid firmly closed as long as the force generated by the pressure inside the silo does not overcome the spring force. Once the pressure exceeds the pre-set value the lid is pushed up and pressure can escape. The smaller lid covers the central circular opening of the external lid from below. It is held in the middle by a single spring rod and is pressed onto the external lid by the normal air pressure inside the silo. In the event of suction pressure the spring is compressed and allows the lid to drop. The air entering the silo from outside ensures rapid pressure balance and pushes the central lid back up into "closed" position.

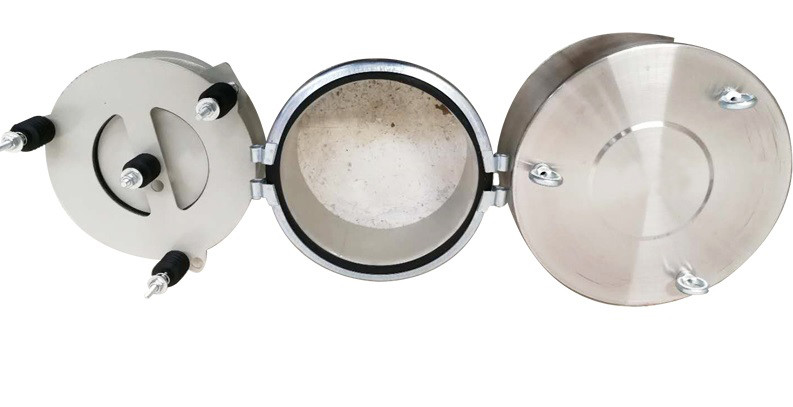

Detail show:

VCP Pressure Relief Valve Safety Valve Horizontal Portable Cement Silo Parts







Technical Features:



Model Preset for maximum negative pressure Preset for maximum excess pressure Weight
VCP273 -0.005 bar 0.05 bar 9.5KG

Product Tags:

portable cement silo



bulk cement storage


Buy cheap VCP Pressure Relief Valve Safety Valve Horizontal Portable Cement Silo Parts product

VCP Pressure Relief Valve Safety Valve Horizontal Portable Cement Silo Parts Images
